Description

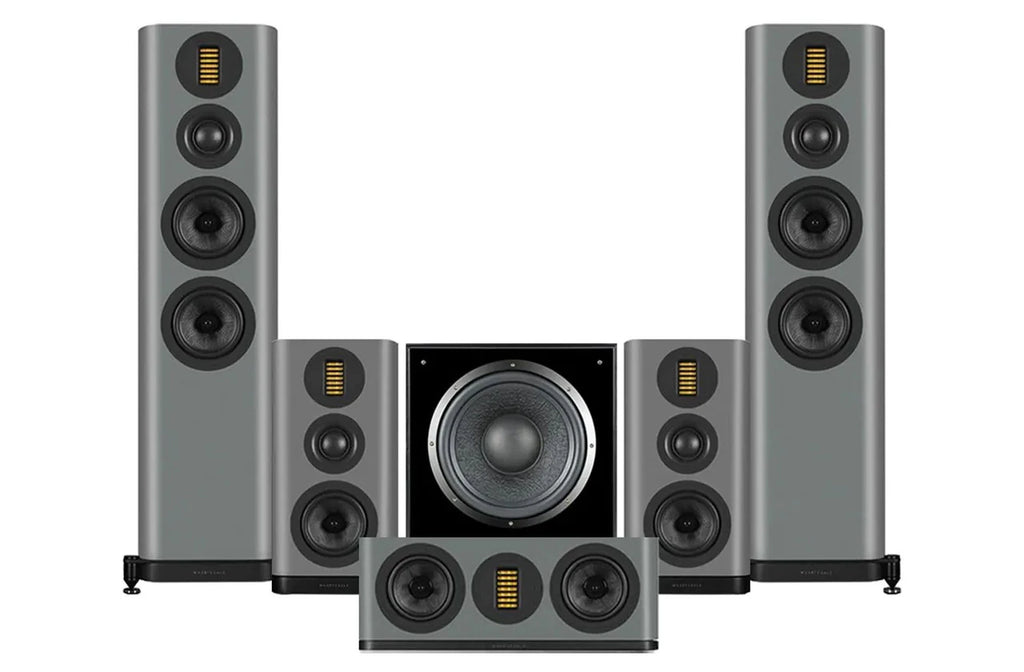

The Flagship EVO 5 Home Cinema Package
Built around the flagship EVO 5.4 floorstanding speakers, this package is the most capable way to enjoy the EVO 5 Series in a home cinema. It comprises a pair of EVO 5.4 towers, a pair of EVO 5.2 3-way bookshelf speakers, an EVO 5.C centre speaker and an SW-10 subwoofer, with a saving of £200 compared with buying them separately. Every speaker uses Wharfedale’s evolved AMT tweeter, whose pleated diaphragm moves four times more air than a dome tweeter of the same surface area, for low distortion, fast transients and wide dispersion. The EVO 5.4 and 5.2 add a dedicated 2 inch soft dome midrange and 6.5 inch black woven Kevlar bass drivers. Silentweave damping behind the diaphragm, ResoFrame damping on every drive unit, Resoseal treatment on the cones, larger cabinets, a hybrid metal and wood plinth and a new three-directional Slot Loaded Profiled Port combine for deep yet controlled bass.
Key Features
-
Package of one pair of EVO 5.4 towers, one pair of EVO 5.2 bookshelf speakers, one EVO 5.C centre and one SW-10 subwoofer
-
35 x 70mm AMT tweeters across all speakers
-
3-way EVO 5.4 and EVO 5.2 with 2 inch soft dome midrange and 6.5 inch black woven Kevlar bass drivers
-
Silentweave damping behind the AMT diaphragm and ResoFrame damping on all drive units
-
Resoseal treatment on the cones for richer midrange and vocals
-
Three-directional Slot Loaded Profiled Port (SLPP) for controlled, articulate bass
-
Larger cabinets with a hybrid metal and wood plinth
-

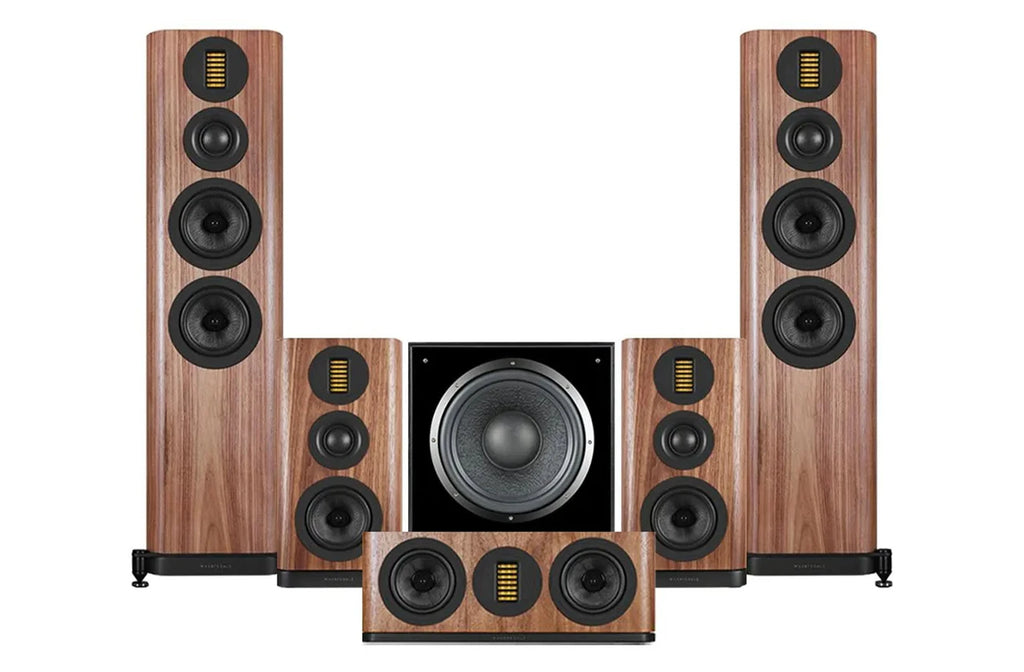

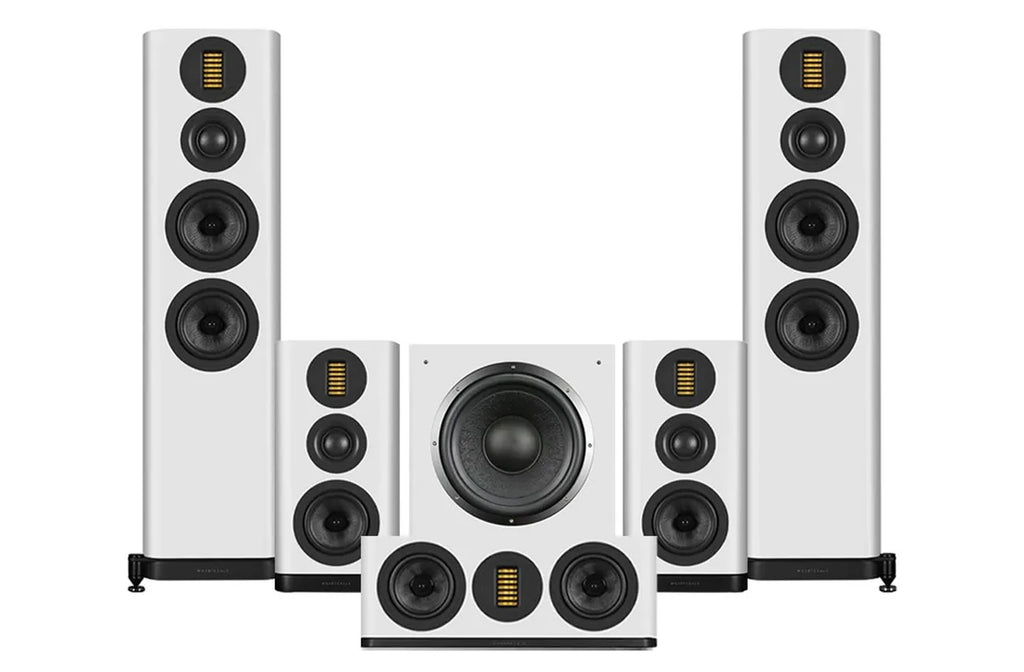

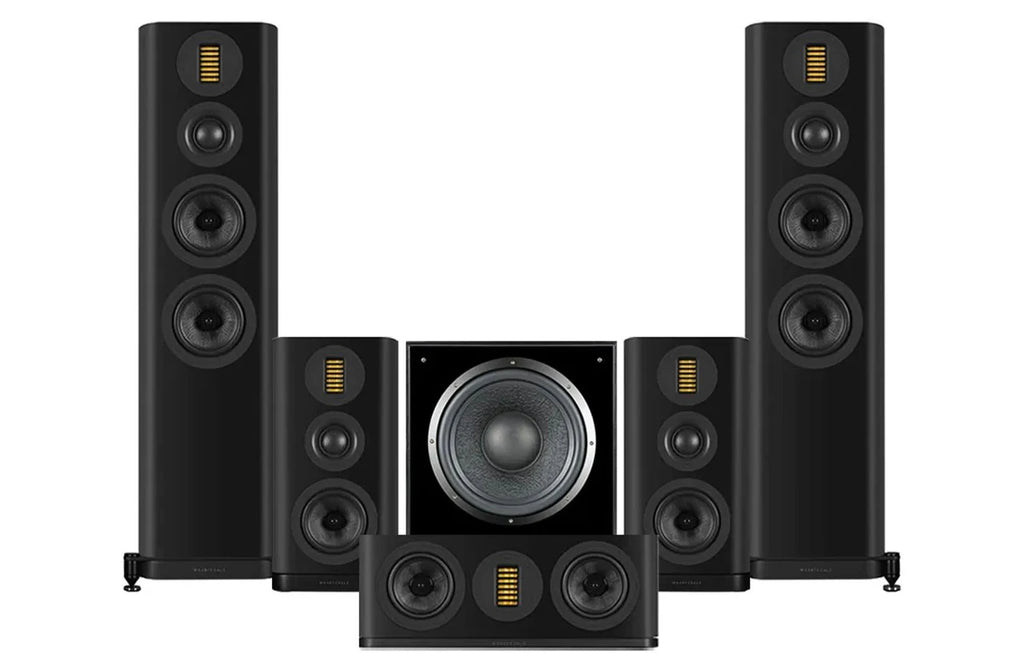

Speaker finishes: Black, White, Lunar Grey or Walnut
-

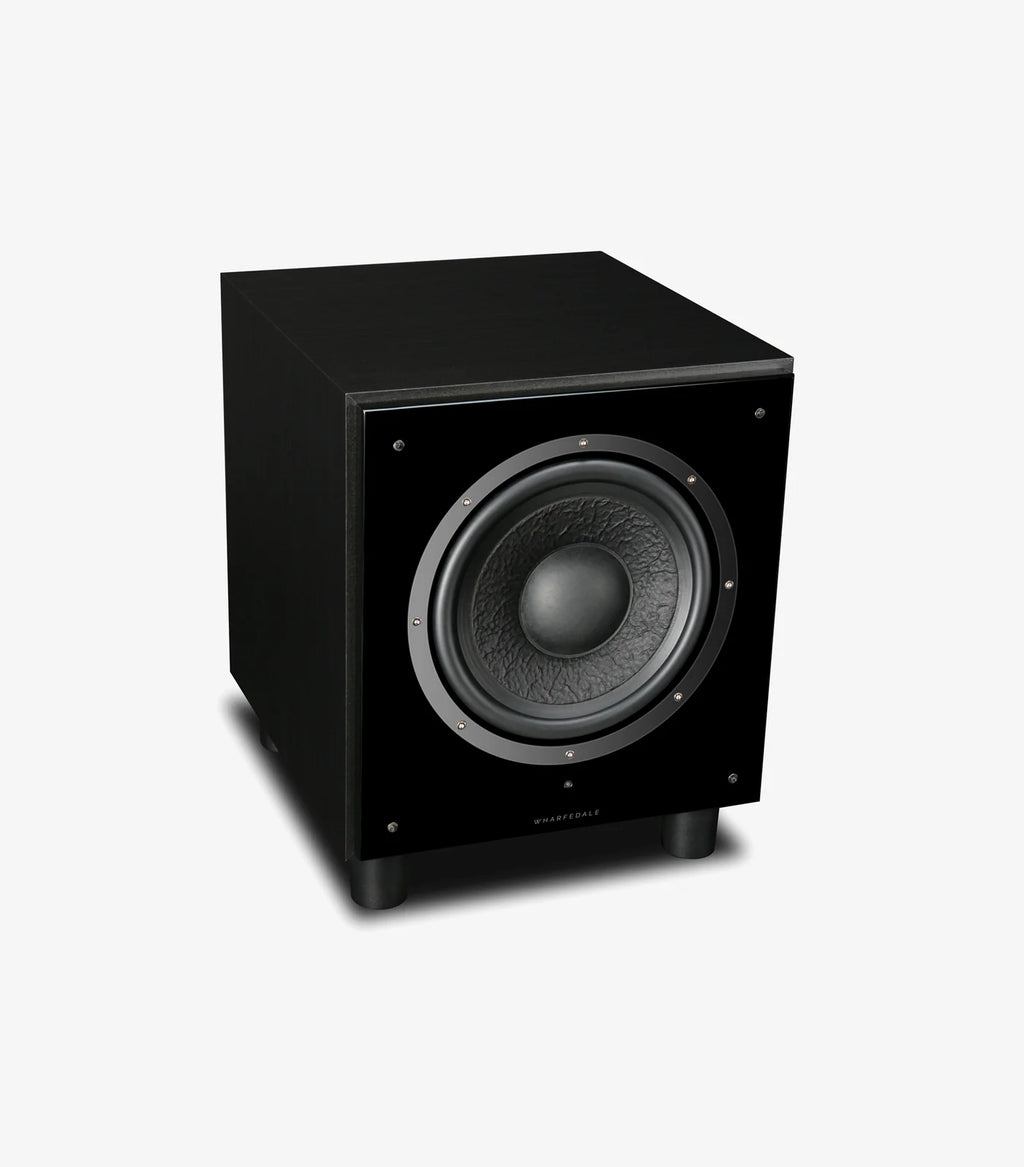

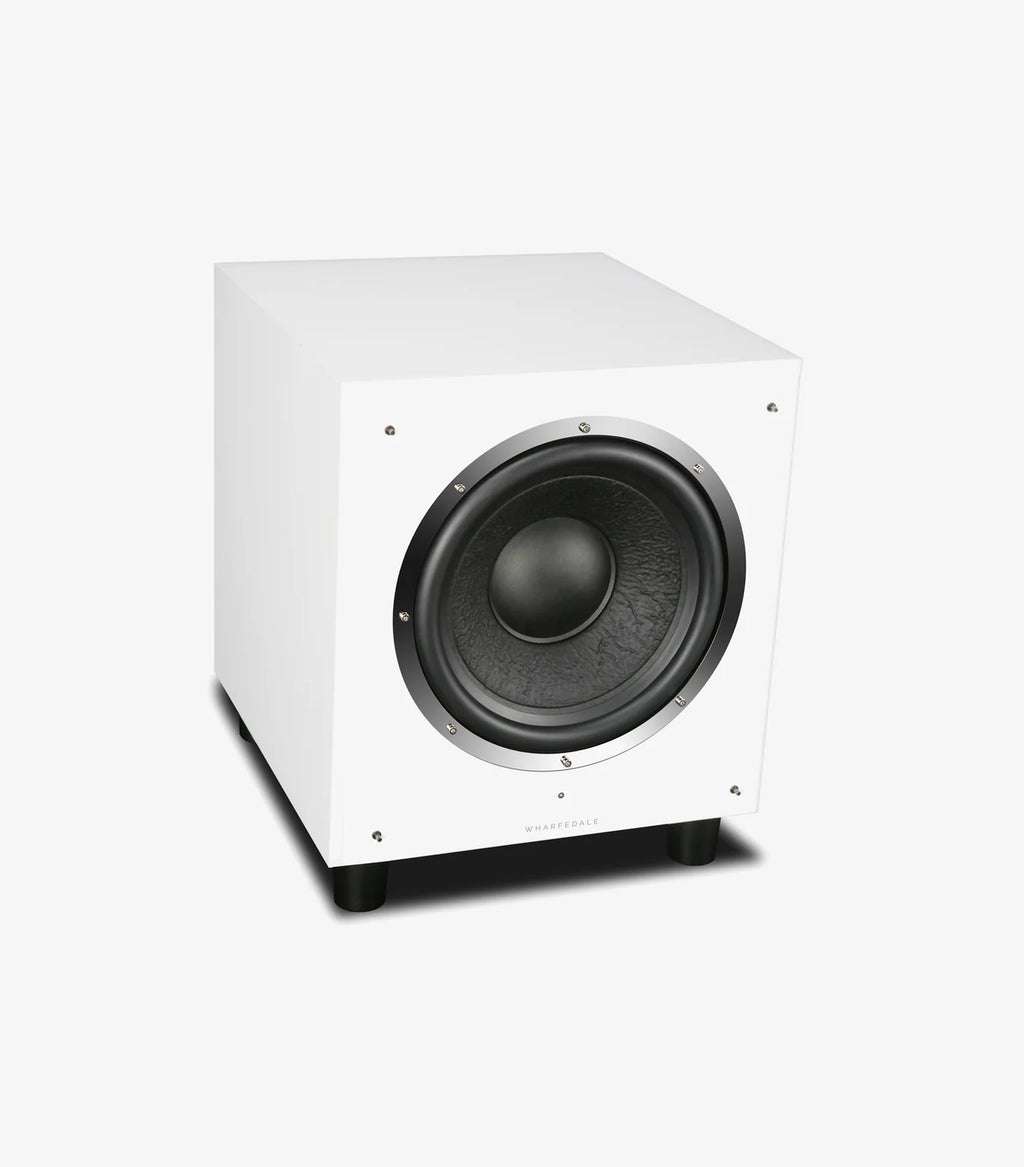

SW-10 subwoofer finish: Black Wood or White Sandex
Package Contents
|
Component |
Quantity |
Role |
|
EVO 5.4 floorstanding speaker |
2 (one pair) |
Front left and right |
|
EVO 5.2 bookshelf speaker |
2 (one pair) |
Surround left and right |
|
EVO 5.C centre speaker |
1 |
Centre channel |
|
SW-10 subwoofer |
1 |
LFE / subwoofer |
Speaker Specifications
|
Specification |
EVO 5.4 |
EVO 5.2 |
EVO 5.C |
|
General Description |
3-way floorstanding |
3-way bookshelf |
2-way centre |
|
Enclosure Type |
Bass reflex |
Bass reflex |
Bass reflex |
|
Bass Driver |
2 x 6.5 inch (165mm) black woven Kevlar cone |
6.5 inch (165mm) black woven Kevlar cone |
2 x 5 inch (130mm) black woven Kevlar cone |
|
Midrange Driver |
2 inch (50mm) soft dome |
2 inch (50mm) soft dome |
None |
|
Treble Driver |
35 x 70mm AMT |
35 x 70mm AMT |
35 x 70mm AMT |
|
Sensitivity (2.83V @ 1m) |
90dB |
88dB |
89dB |
|
Recommended Amplifier Power |
30-200W |
25-120W |
25-120W |
|
Peak SPL |
108dB |
105dB |
103dB |
|
Nominal Impedance |
4Ω (8Ω compatible) |
4Ω (8Ω compatible) |
4Ω (8Ω compatible) |
|
Minimum Impedance |
4.3Ω |
3.2Ω |
4.1Ω |
|
Frequency Response (±3dB) |
42Hz to 24kHz |
44Hz to 24kHz |
56Hz to 24kHz |
|
Bass Extension (-6dB) |
36Hz |
38Hz |
49Hz |
|
Crossover Frequency |
1.1kHz, 4kHz |
800Hz, 4.3kHz |
2.3kHz |
|
Cabinet Volume |
59.5L |
27.2L |
14L |
|
Dimensions (H x W x D) |
1028 x 302 x (350+40)mm (on plinth and spike) |
497 x 260 x (350+40)mm (on plinth) |
188 x 520 x (265+40)mm (on plinth) |
|
Net Weight |
31.2kg each |
15.0kg each |
12.5kg each |
|
Standard Accessories |
Spike seat |
Rubber feet |
Rubber feet |
SW-10 Subwoofer Specifications
|
Specification |
Details |
|
Description |
Active Dynamic-Drive IB subwoofer system |
|
Drive Unit |
1 x 10 inch (250mm) long-throw cone |
|
Frequency Response |
40Hz to 120Hz (±3dB) |
|
Amplifier Power Output |
200W |
|
Peak Power Output |
350W |
|
Line Input Sensitivity |
200mV for maximum output |
|
Crossover Range |
30Hz to 150Hz |
|
Inputs |
Stereo line in (2 x RCA), mono LFE line in (RCA) |
|
Input Impedance |
Line input 10kΩ, LFE 5kΩ |
|
Signal-to-Noise Ratio |
85dB or better |
|
Average Max Output @ 1m |
110dB |
|
Features |
Phase inversion, auto on/off |
|
Dimensions |
Height 358mm (+58mm with feet), width 336mm, depth 366mm (+15mm) |
|
Net Weight |
15kg |
|
Finishes |
Black Wood, White Sandex |
|
Accessories |
IEC power cord |
If the 5.4 towers are more than your room needs, the EVO 5.3 package is a more compact step into the same series.
