Description
A 5.1 System With AMT Tweeters at Every Channel

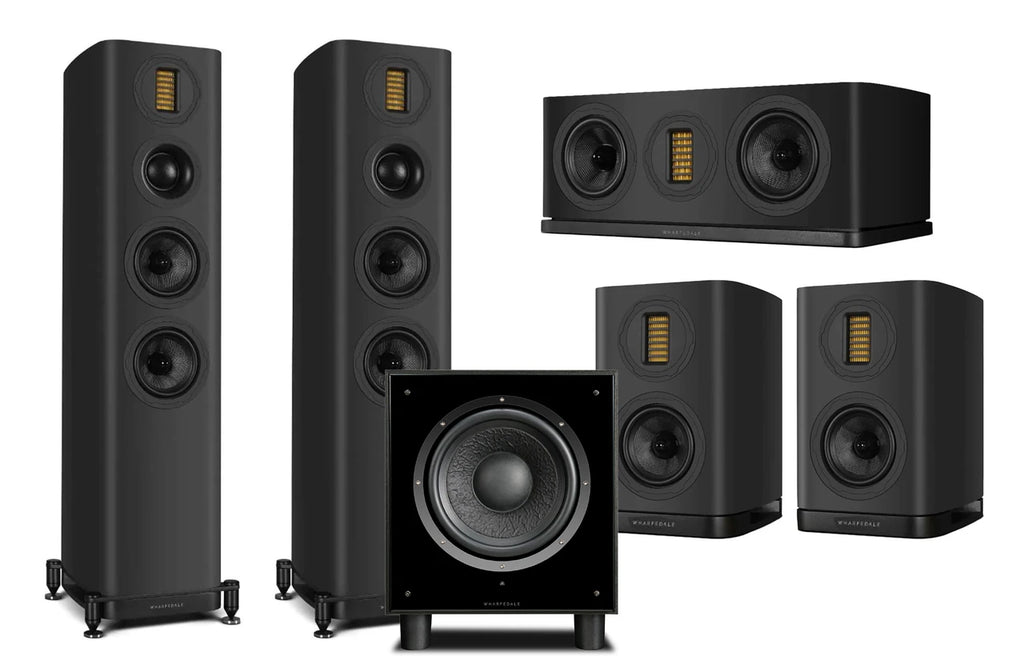

The EVO 5 Series builds on the multi-award-winning EVO 4 with new design touches and technical refinements, and this package brings it to home cinema. It comprises a pair of EVO 5.3 floorstanding speakers, a pair of EVO 5.1 bookshelf speakers, an EVO 5.C centre speaker and an SW-10 subwoofer, with a saving of £100 compared with buying them separately.
The heart of the series is its AMT (Air Motion Transformer) tweeter, whose pleated diaphragm moves four times more air than a dome tweeter of the same surface area, with lower distortion and faster transients. New Silentweave damping behind the diaphragm, ResoFrame elastomer damping on all drive units and Resoseal treatment on the cones refine the sound further. Larger cabinets, a hybrid metal and wood plinth and a new three-directional Slot Loaded Profiled Port, up from two directions on the EVO 4, deliver tight, well-defined bass.
Key Features
-
Package of one pair of EVO 5.3 towers, one pair of EVO 5.1 bookshelf speakers, one EVO 5.C centre and one SW-10 subwoofer
-
35 x 70mm AMT tweeters across all speakers
-
Black woven Kevlar bass cones, with Resoseal treatment for richer midrange and vocals
-
Silentweave damping behind the AMT diaphragm and ResoFrame damping on all drive units
-
Three-directional Slot Loaded Profiled Port (SLPP) for controlled, articulate bass
-
Larger cabinets with a hybrid metal and wood plinth
-

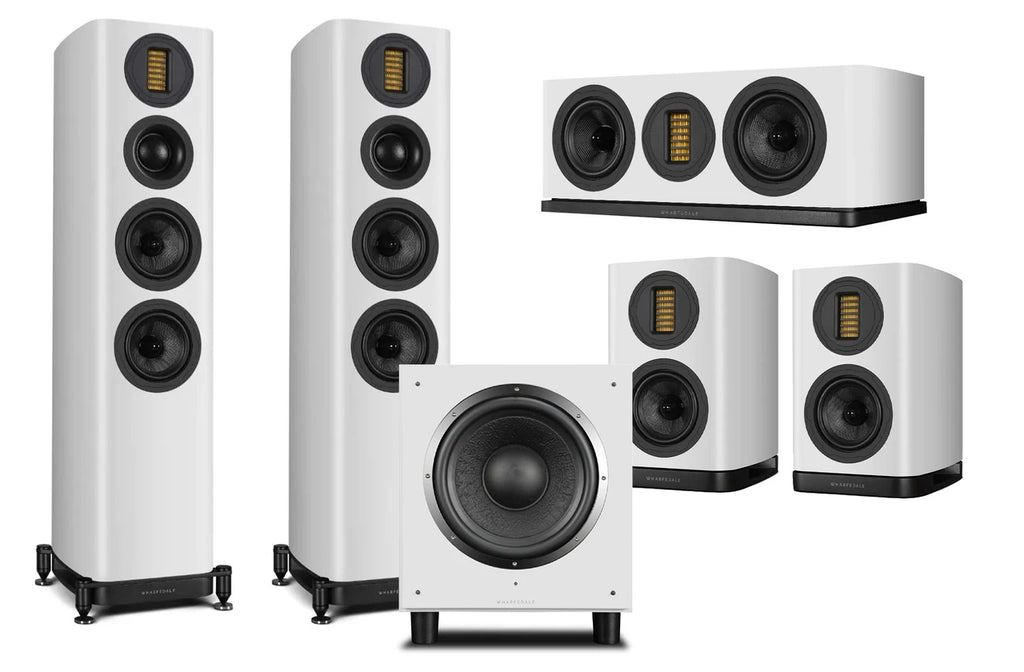

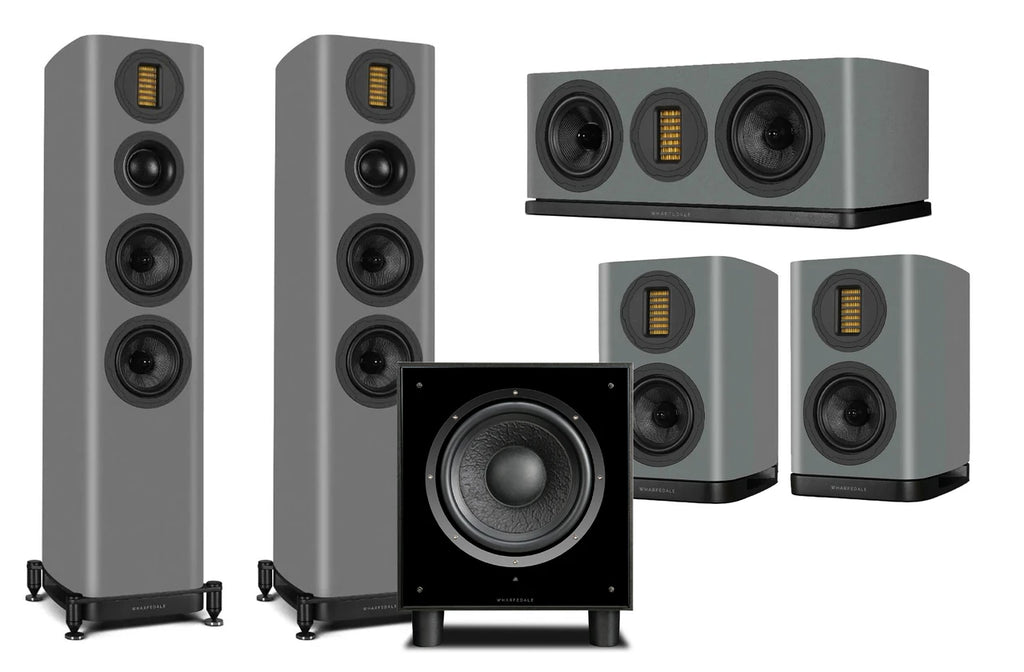

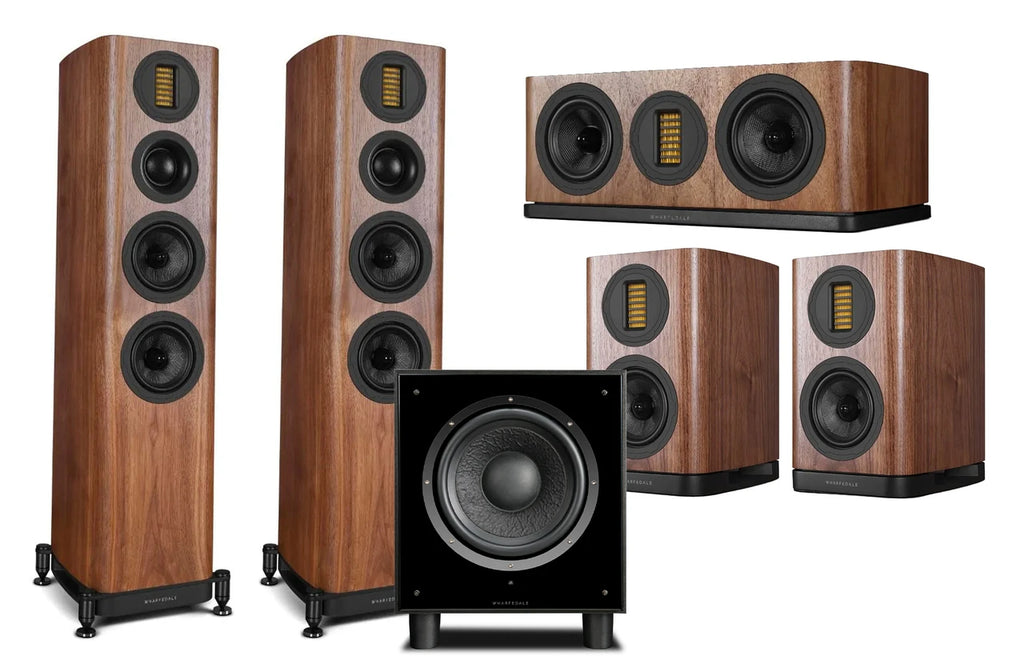

Speaker finishes: Black, White, Lunar Grey or Walnut
-

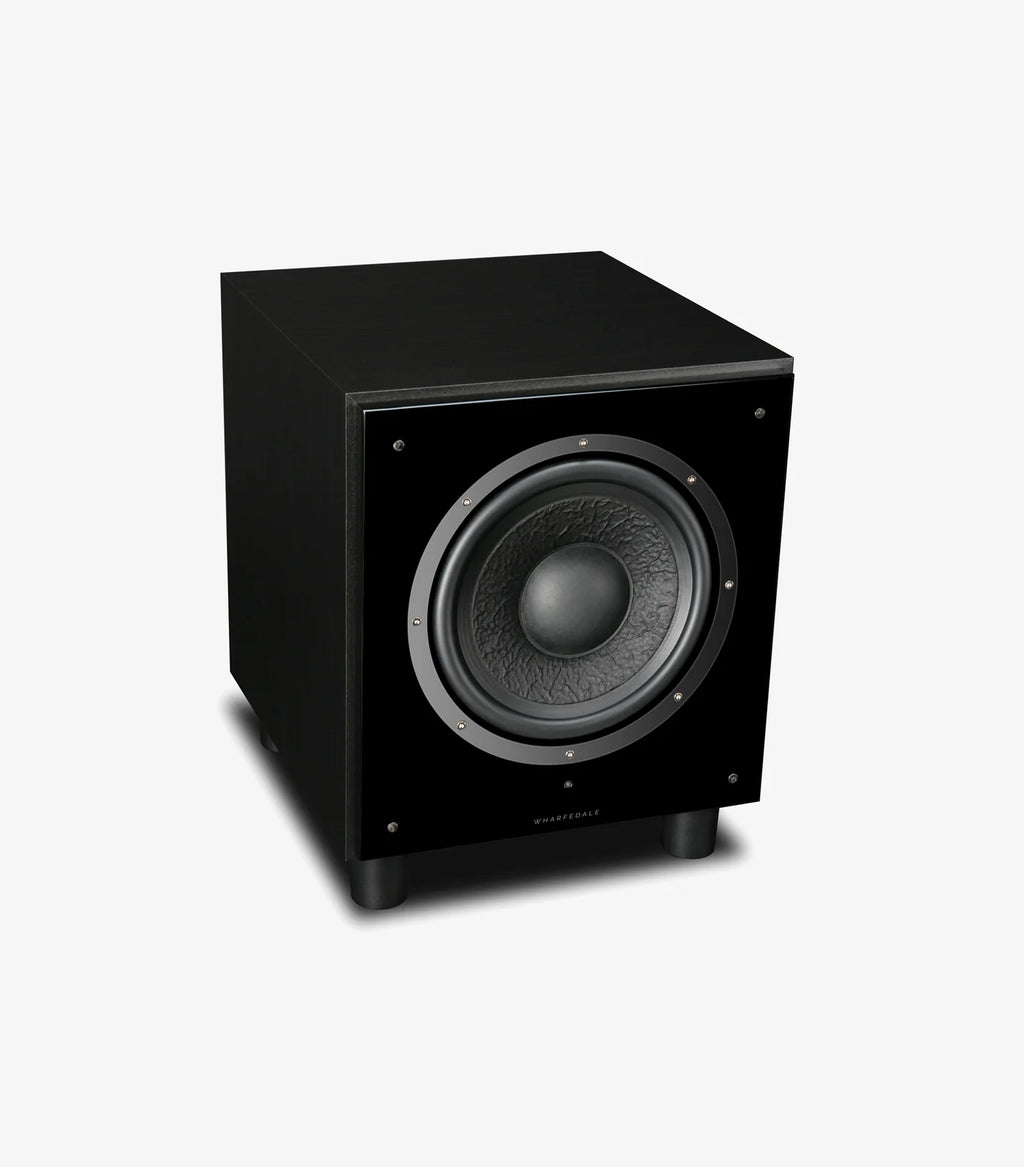

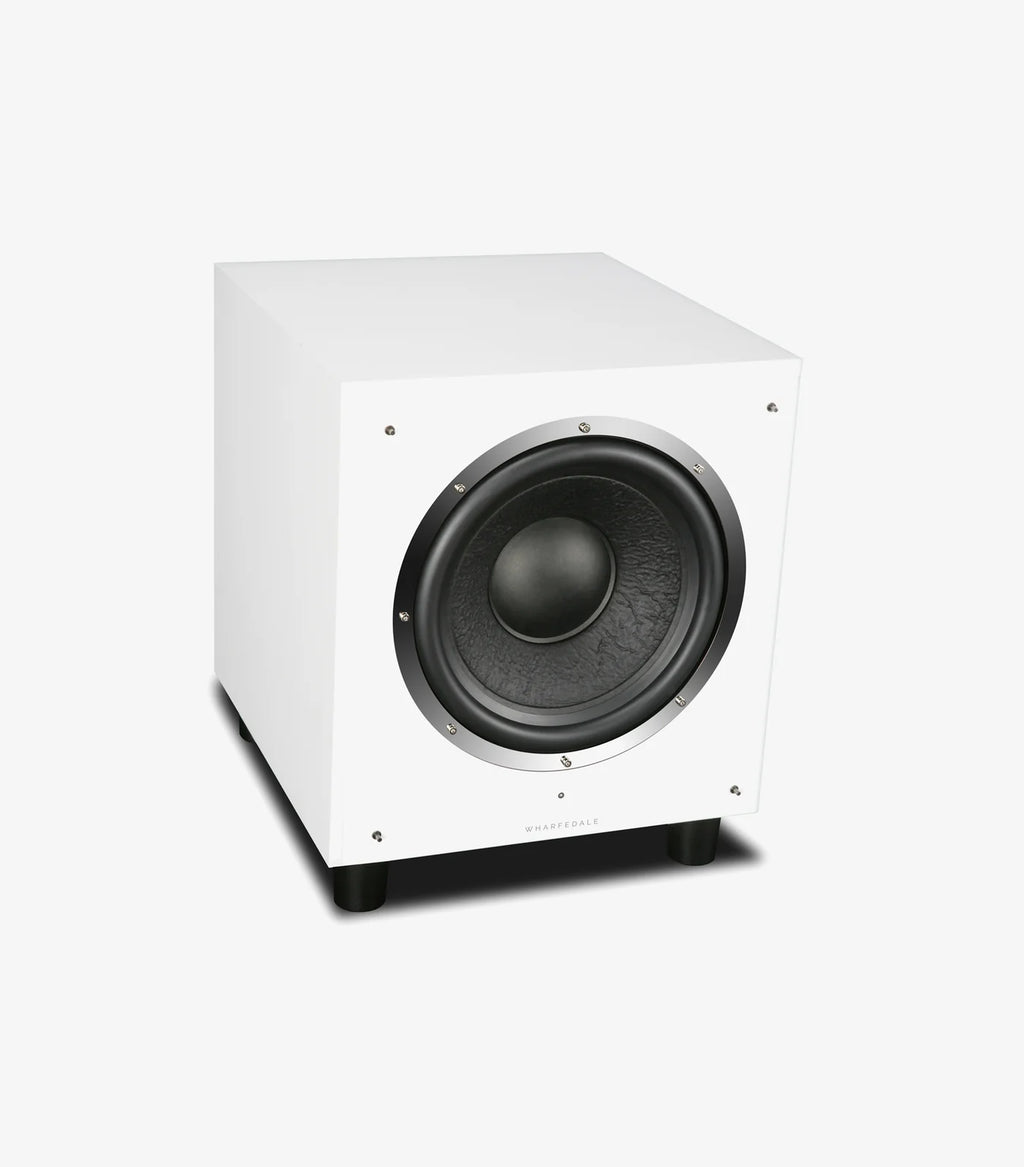

SW-10 subwoofer finish: Black Wood or White Sandex
Package Contents
|
Component |
Quantity |
Role |
|
EVO 5.3 floorstanding speaker |
2 (one pair) |
Front left and right |
|
EVO 5.1 bookshelf speaker |
2 (one pair) |
Surround left and right |
|
EVO 5.C centre speaker |
1 |
Centre channel |
|
SW-10 subwoofer |
1 |
LFE / subwoofer |
Speaker Specifications
|
Specification |
EVO 5.3 |
EVO 5.1 |
EVO 5.C |
|
General Description |
3-way floorstanding |
2-way bookshelf |
2-way centre |
|
Enclosure Type |
Bass reflex |
Bass reflex |
Bass reflex |
|
Bass Driver |
2 x 5 inch (130mm) black woven Kevlar cone |
5 inch (130mm) black woven Kevlar cone |
2 x 5 inch (130mm) black woven Kevlar cone |
|
Midrange Driver |
2 inch (50mm) soft dome |
None |
None |
|
Treble Driver |
35 x 70mm AMT |
35 x 70mm AMT |
35 x 70mm AMT |
|
Sensitivity (2.83V @ 1m) |
88dB |
87dB |
89dB |
|
Recommended Amplifier Power |
25-150W |
25-100W |
25-120W |
|
Peak SPL |
106dB |
98dB |
103dB |
|
Nominal Impedance |
4Ω (8Ω compatible) |
4Ω (8Ω compatible) |
4Ω (8Ω compatible) |
|
Minimum Impedance |
3.5Ω |
3.4Ω |
4.1Ω |
|
Frequency Response (±3dB) |
46Hz to 24kHz |
56Hz to 24kHz |
56Hz to 24kHz |
|
Bass Extension (-6dB) |
40Hz |
46Hz |
49Hz |
|
Crossover Frequency |
825Hz, 4kHz |
2.7kHz |
2.3kHz |
|
Cabinet Volume |
35.4L |
11.5L |
14L |
|
Dimensions (H x W x D) |
933 x 266 x (285+40)mm (on plinth and spike) |
340 x 220 x (285+40)mm (on plinth) |
188 x 520 x (265+40)mm (on plinth) |
|
Net Weight |
21.5kg each |
8.0kg each |
12.5kg each |
|
Standard Accessories |
Spike seat |
Rubber feet |
Rubber feet |
SW-10 Subwoofer Specifications
|
Specification |
Details |
|
Description |
Active Dynamic-Drive IB subwoofer system |
|
Drive Unit |
1 x 10 inch (250mm) long-throw cone |
|
Frequency Response |
40Hz to 120Hz (±3dB) |
|
Amplifier Power Output |
200W |
|
Peak Power Output |
350W |
|
Line Input Sensitivity |
200mV for maximum output |
|
Crossover Range |
30Hz to 150Hz |
|
Inputs |
Stereo line in (2 x RCA), mono LFE line in (RCA) |
|
Input Impedance |
Line input 10kΩ, LFE 5kΩ |
|
Signal-to-Noise Ratio |
85dB or better |
|
Average Max Output @ 1m |
110dB |
|
Features |
Phase inversion, auto on/off |
|
Dimensions |
Height 358mm (+58mm with feet), width 336mm, depth 366mm (+15mm) |
|
Net Weight |
15kg |
|
Finishes |
Black Wood, White Sandex |
|
Accessories |
IEC power cord |
For a bigger front soundstage, the EVO 5.4 package steps up to the flagship towers and 3-way surrounds.
