Description

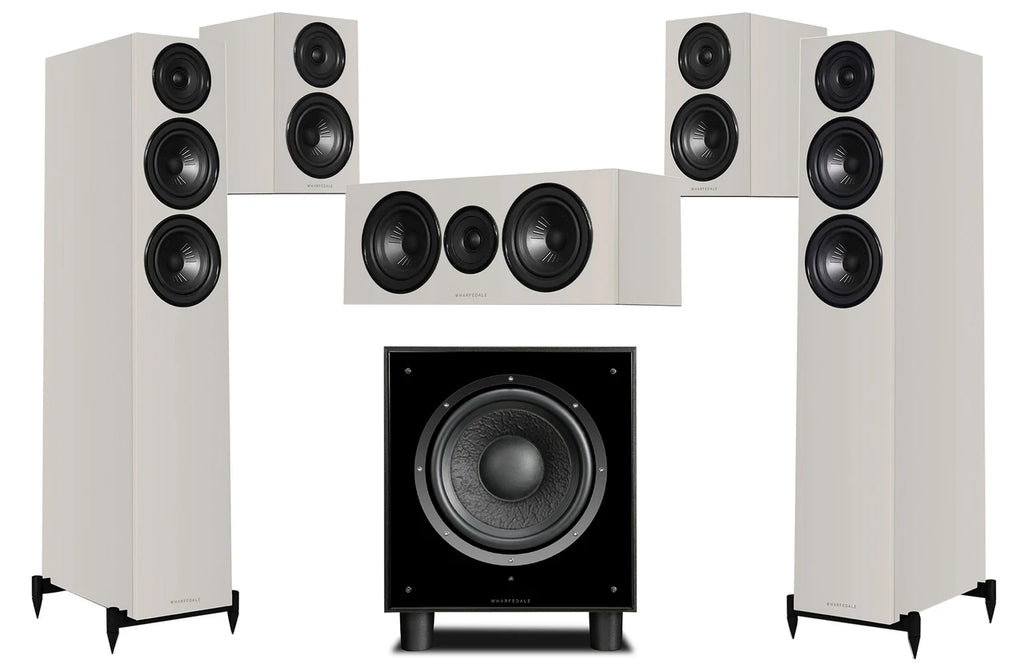

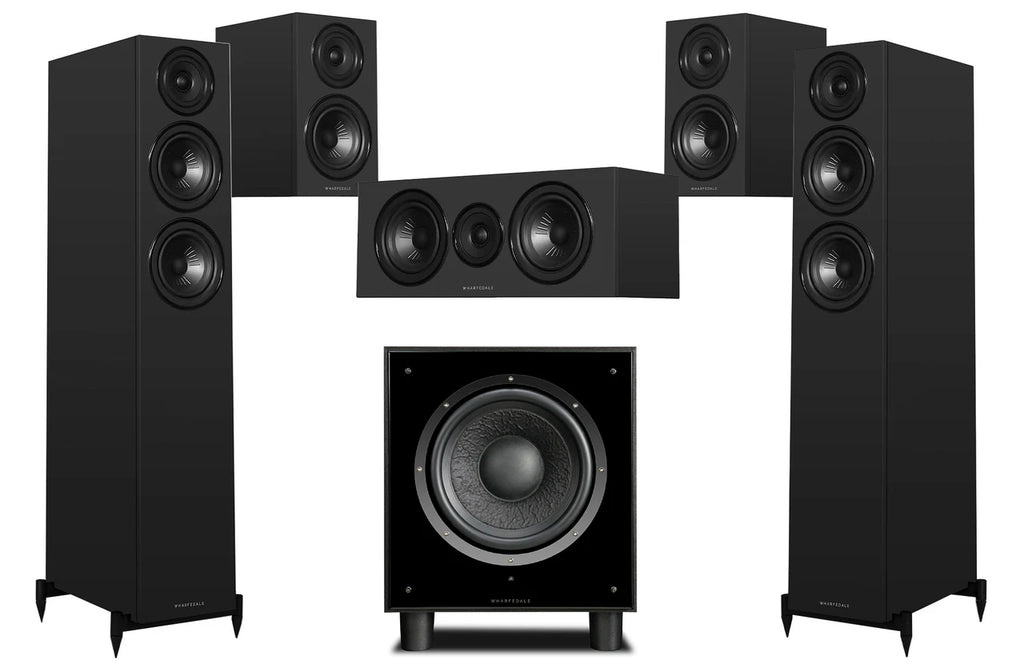

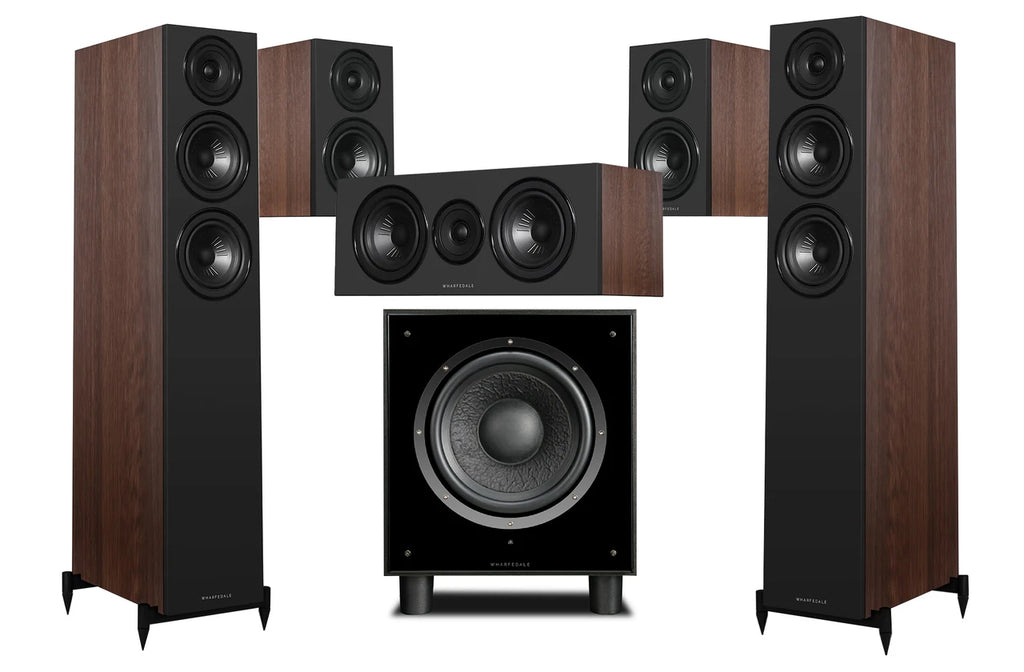

Floorstanding Fronts for a Fuller 5.1 Sound
This 5.1 package pairs Diamond 12.3i floorstanding speakers for the front channels with Diamond 12.1i bookshelf speakers as surrounds, a Diamond 12.Ci centre speaker and an SW-10 subwoofer, with a saving of £79.85 compared with buying them separately. The 12.3i is a 2.5-way tower with dedicated 5 inch bass and 5 inch midrange drivers and a 25mm woven polyester dome tweeter, giving the front soundstage more scale and low-end authority than a bookshelf pair. The updated Diamond 12i series adds three modern finishes, a refined bass port and revised internal damping for clearer bass, while Klarity cones, a Linkwitz-Riley crossover with air-core inductors and a low-resonance multi-layer cabinet keep the sound neutral and engaging.
Key Features
-
Package of one pair of Diamond 12.3i towers, one pair of 12.1i bookshelf speakers, one 12.Ci centre and one SW-10 subwoofer
-
2.5-way floorstanding 12.3i with 5 inch bass and 5 inch midrange drivers
-
Klarity (polypropylene and mica) cones with 25mm woven polyester dome tweeters
-
Redesigned bass port and revised internal damping for improved bass clarity
-
Linkwitz-Riley crossover with air-core inductors
-
Multi-layered sandwich cabinets with spot bracing
-
Speaker finishes: All-Black, Stone Grey or Classic Walnut with a semi-matte black baffle
-
SW-10 subwoofer finish: Black Wood or White Sandex
-
3 year Wharfedale warranty
Package Contents
|
Component |
Quantity |
Role |
|
Diamond 12.3i floorstanding speaker |
2 (one pair) |
Front left and right |
|
Diamond 12.1i bookshelf speaker |
2 (one pair) |
Surround left and right |
|
Diamond 12.Ci centre speaker |
1 |
Centre channel |
|
SW-10 subwoofer |
1 |
LFE / subwoofer |
Speaker Specifications
|
Specification |
Diamond 12.3i |
Diamond 12.1i |
Diamond 12.Ci |
|
General Description |
2.5-way floorstanding |
2-way bookshelf |
2-way centre |
|
Enclosure Type |
Bass reflex |
Bass reflex |
Closed box |
|
Bass Driver |
5 inch (130mm) advanced PP cone |
5 inch (130mm) advanced PP cone |
2 x 5 inch (130mm) advanced PP cone |
|
Midrange Driver |
5 inch (130mm) advanced PP cone |
None |
None |
|
Treble Driver |
1 inch (25mm) textile dome |
1 inch (25mm) textile dome |
1 inch (25mm) textile dome |
|
Sensitivity (2.83V @ 1m) |
89dB |
88dB |
90dB |
|
Recommended Amplifier Power |
30-150W |
20-100W |
20-120W |
|
Peak SPL |
102dB |
96dB |
96dB |
|
Nominal Impedance |
8Ω compatible |
8Ω compatible |
8Ω compatible |
|
Minimum Impedance |
5.0Ω |
4.0Ω |
4.0Ω |
|
Frequency Response (±3dB) |
45Hz to 20kHz |
65Hz to 20kHz |
90Hz to 20kHz |
|
Bass Extension (-6dB) |
40Hz |
60Hz |
80Hz |
|
Crossover Frequency |
2.2kHz |
2.6kHz |
2.2kHz |
|
Cabinet Volume |
26.6L |
8.2L |
8.7L |
|
Dimensions (H x W x D) |
(925+50) x 180 x (320+28)mm |
312 x 180 x (250+28)mm |
180 x 480 x (180+28)mm |
|
Net Weight |
19.5kg each |
6.8kg each |
8.5kg each |
SW-10 Subwoofer Specifications
|
Specification |
Details |
|
Description |
Active Dynamic-Drive IB subwoofer system |
|
Drive Unit |
1 x 10 inch (250mm) long-throw cone |
|
Frequency Response |
40Hz to 120Hz (±3dB) |
|
Amplifier Power Output |
200W |
|
Peak Power Output |
350W |
|
Line Input Sensitivity |
200mV for maximum output |
|
Crossover Range |
30Hz to 150Hz |
|
Inputs |
Stereo line in (2 x RCA), mono LFE line in (RCA) |
|
Input Impedance |
Line input 10kΩ, LFE 5kΩ |
|
Signal-to-Noise Ratio |
85dB or better |
|
Average Max Output @ 1m |
110dB |
|
Features |
Phase inversion, auto on/off |
|
Dimensions |
Height 358mm (+58mm with feet), width 336mm, depth 366mm (+15mm) |
|
Net Weight |
15kg |
|
Finishes |
Black Wood, White Sandex |
|
Accessories |
IEC power cord |
Starting smaller? The Diamond 12.1i package uses bookshelf speakers across the front.
