Description
A Complete 5.1 System Built Around Diamond 12i Speakers
This package gives you a full 5.1 surround system from one of Britain’s best-known speaker names. It comprises two pairs of Diamond 12.1i bookshelf speakers for the front and surround channels, a Diamond 12.Ci centre speaker and an SW-10 subwoofer, with a saving of £129.85 compared with buying them separately. The Diamond 12 Series has been praised as a standard for performance and value in affordable HiFi since 2020, and the updated 12i series adds three modern finishes plus refined bass port tuning and internal damping for clearer, better controlled bass. Klarity cones, blended from polypropylene and mica, are light, stiff and well damped, and a 25mm woven polyester dome tweeter keeps treble smooth and natural. A Linkwitz-Riley crossover with air-core inductors and a multi-layer low-resonance cabinet with spot bracing complete the design.
Key Features
-

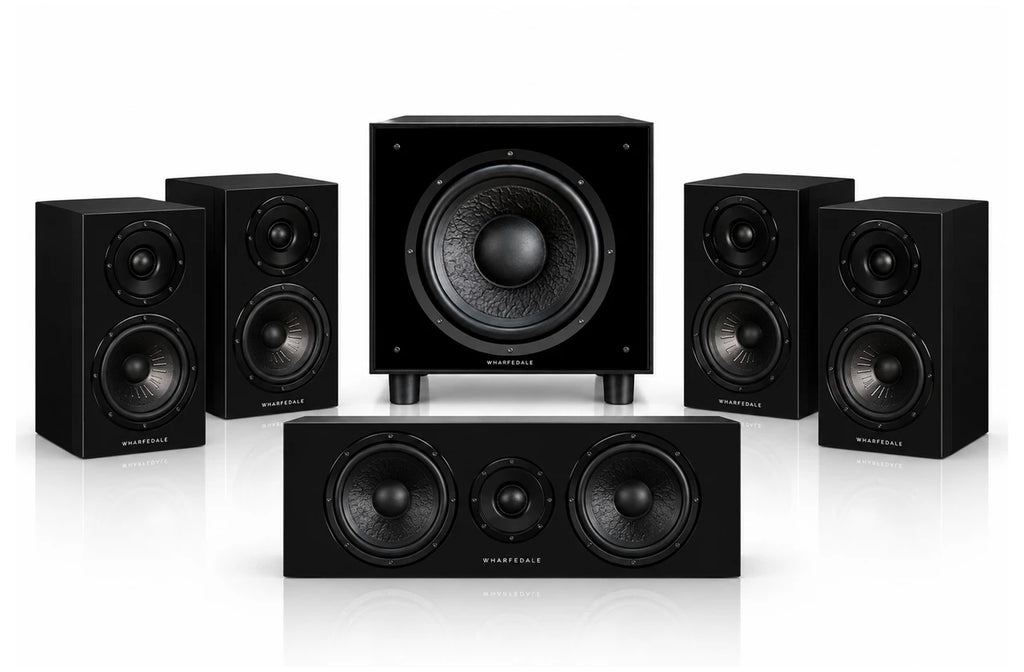

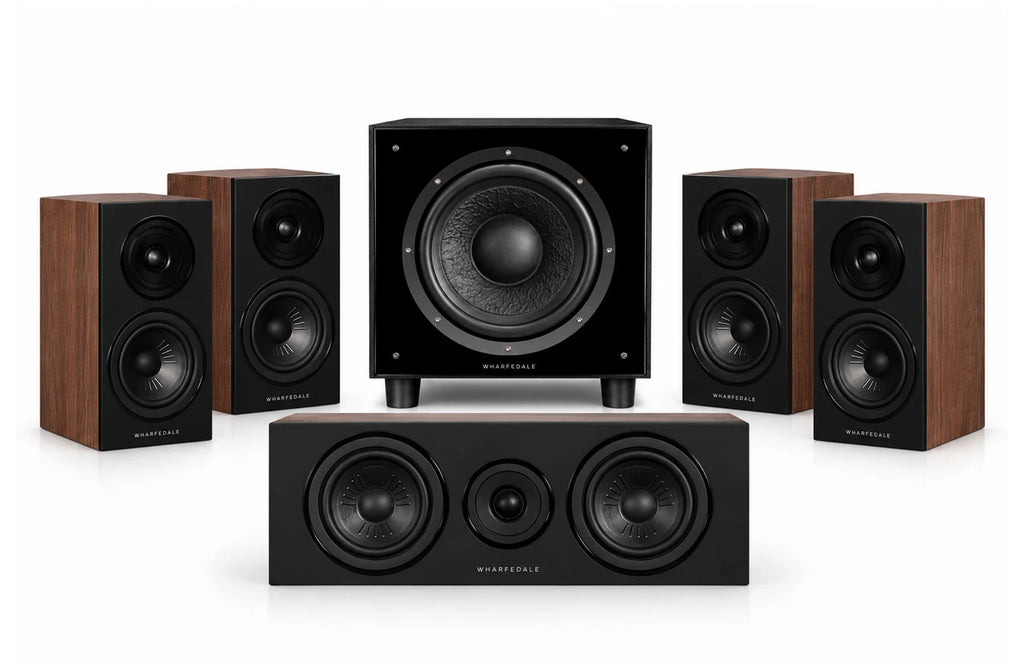

Package of two pairs of Diamond 12.1i, one Diamond 12.Ci centre and one SW-10 subwoofer
-
Klarity (polypropylene and mica) bass/mid cones with 25mm woven polyester dome tweeters
-
Redesigned bass port and revised internal damping for improved bass clarity
-
Linkwitz-Riley crossover with air-core inductors
-
Multi-layered sandwich cabinets with spot bracing
-
Speaker finishes: All-Black, Stone Grey or Classic Walnut with a semi-matte black baffle
-
SW-10 subwoofer finish: Black Wood or White Sandex
-
3 year Wharfedale warranty
Package Contents
|
Component |
Quantity |
Role |
|
Diamond 12.1i bookshelf speaker |
4 (two pairs) |
Front and surround channels |
|
Diamond 12.Ci centre speaker |
1 |
Centre channel |
|
SW-10 subwoofer |
1 |
LFE / subwoofer |
Speaker Specifications
|
Specification |
Diamond 12.1i |
Diamond 12.Ci |
|
General Description |
2-way bookshelf speaker |
2-way centre speaker |
|
Enclosure Type |
Bass reflex |
Closed box |
|
Bass Driver |
5 inch (130mm) advanced PP cone |
2 x 5 inch (130mm) advanced PP cone |
|
Treble Driver |
1 inch (25mm) textile dome |
1 inch (25mm) textile dome |
|
Sensitivity (2.83V @ 1m) |
88dB |
90dB |
|
Recommended Amplifier Power |
20-100W |
20-120W |
|
Peak SPL |
96dB |
96dB |
|
Nominal Impedance |
8Ω compatible |
8Ω compatible |
|
Minimum Impedance |
4.0Ω |
4.0Ω |
|
Frequency Response (±3dB) |
65Hz to 20kHz |
90Hz to 20kHz |
|
Bass Extension (-6dB) |
60Hz |
80Hz |
|
Crossover Frequency |
2.6kHz |
2.2kHz |
|
Cabinet Volume |
8.2L |
8.7L |
|
Dimensions (H x W x D) |
312 x 180 x (250+28)mm |
180 x 480 x (180+28)mm |
|
Net Weight |
6.8kg each |
8.5kg each |
SW-10 Subwoofer Specifications
|
Specification |
Details |
|
Description |
Active Dynamic-Drive IB subwoofer system |
|
Drive Unit |
1 x 10 inch (250mm) long-throw cone |
|
Frequency Response |
40Hz to 120Hz (±3dB) |
|
Amplifier Power Output |
200W |
|
Peak Power Output |
350W |
|
Line Input Sensitivity |
200mV for maximum output |
|
Crossover Range |
30Hz to 150Hz |
|
Inputs |
Stereo line in (2 x RCA), mono LFE line in (RCA) |
|
Input Impedance |
Line input 10kΩ, LFE 5kΩ |
|
Signal-to-Noise Ratio |
85dB or better |
|
Average Max Output @ 1m |
110dB |
|
Features |
Phase inversion, auto on/off |
|
Dimensions |
Height 358mm (+58mm with feet), width 336mm, depth 366mm (+15mm) |
|
Net Weight |
15kg |
|
Finishes |
Black Wood, White Sandex |
|
Accessories |
IEC power cord |
Want floorstanding fronts? The Diamond 12.3i package swaps the front pair for towers.
