Description
The Definitive Radia Series CD Player

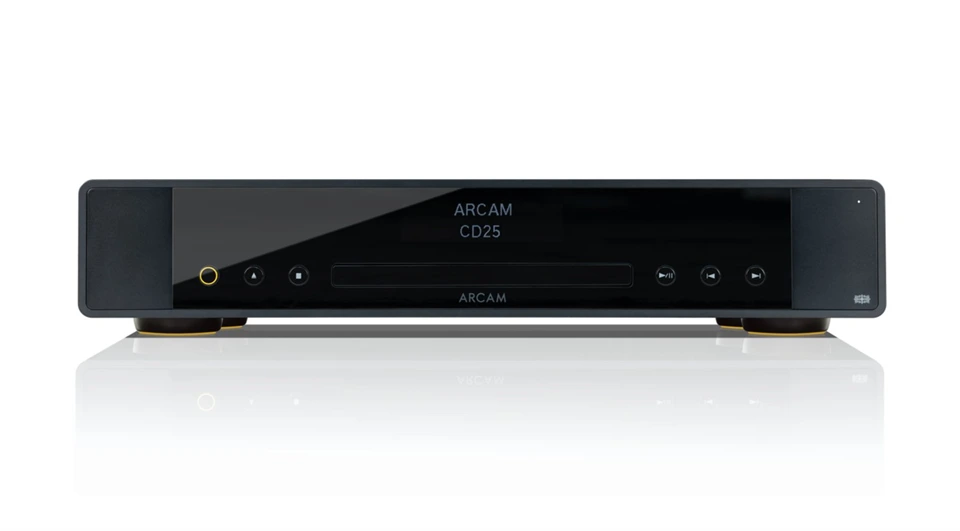

The Arcam CD25 is a high-performance CD player developed from nearly four decades of Arcam digital audio expertise, combining precision engineering with modern circuit design. It features a low-noise linear power supply and a disc mechanism mounted on an internal vibration-damping chassis for stable, accurate signal retrieval.

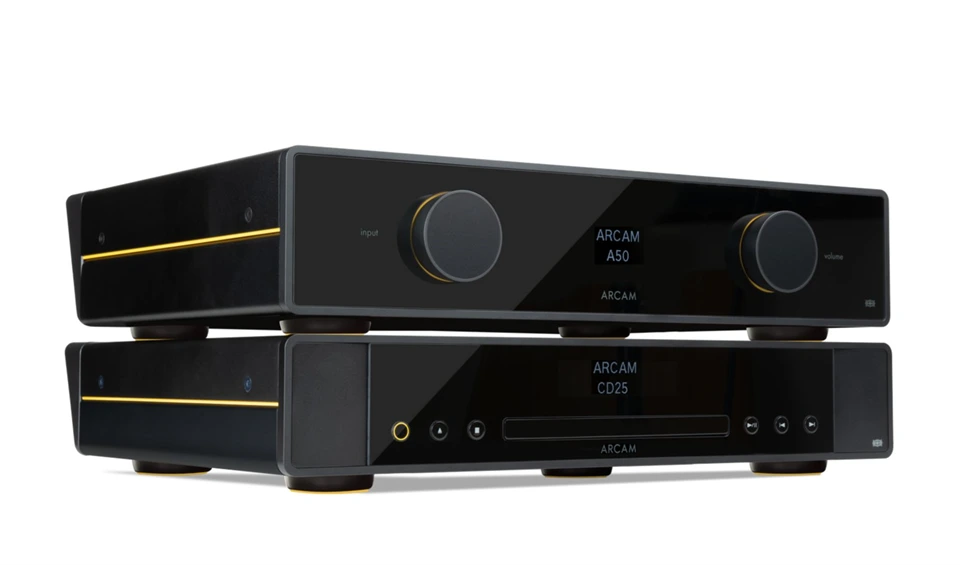

Digital-to-analogue conversion is handled by a dual-mono design using two ESS ES9039Q2M DAC chips, each independently processing one channel in balanced mode for exceptional channel separation and low noise. Balanced XLR outputs make it an ideal partner for the Arcam A50 Signature and SA45, while RCA outputs allow seamless integration with the A25+ and SA35.
Key Features
- Dual-mono DAC architecture using two ESS ES9039Q2M DAC chips with ESS reference voltage regulators
- Each DAC independently processes one channel in balanced mode for superior channel separation
- Low-noise linear power supply for a stable, ultra-quiet electrical foundation
- Vibration-damped disc mechanism for cleaner data retrieval and improved timing accuracy
- Balanced XLR and RCA analogue outputs
- Digital coaxial and optical outputs
- CD, CD-R, and CD-RW playback
- Hi-res audio support: WAV and FLAC files up to 96kHz
- Tuned via blind listening tests for technical precision and musical engagement
- Plastic-free packaging
Specifications Overview
|
Specification |
Details |
|
Product Type |
HiFi CD Player |
|
Series |
Arcam Radia |
|
DAC |
Dual-mono ESS ES9039Q2M (x2, balanced mode) |
|
Supported Media |
CD (Audio), CD-R (Audio / Data), CD-RW (Audio / Data) |
|
Supported Formats |
WAV (LPCM), FLAC, MP3, AAC |
|
Supported Bit Depth |
16-bit to 24-bit |
|
Supported Sample Rates (WAV / FLAC) |
32, 44.1, 48, 88.2, 96kHz |
|
Supported Sample Rates (MP3 / AAC) |
32, 44.1, 48kHz |
|

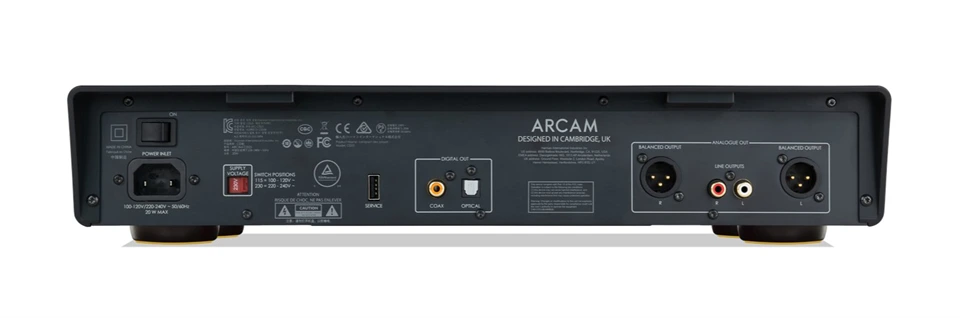

Analogue Outputs |
1 x RCA pair, 1 x XLR pair |
|
Digital Outputs |
1 x optical (Toslink), 1 x coaxial (RCA) |
|
Max Analogue Output (0dBFS, RCA / XLR) |
2.2V RMS / 4.4V RMS |
|
Frequency Response |
20Hz to 20kHz (±0.1dB) |
|
Signal-to-Noise Ratio |
106dB (A-wtd) |
|
Mains Voltage |
100-120V or 220-240V, 50/60Hz |
|
Power Consumption |
20W |
|
Dimensions (WxDxH) |
431 x 329 x 84mm |
|
Weight (Net) |
6.5kg |
|
Weight (Packed) |
9.5kg |
|
Supplied Accessories |
Mains lead, remote control (2 x AAA), Quick Start Guide, Safety Instructions |
The CD25 is ideal for music lovers who want the very best in Compact Disc playback, with dual-mono DAC engineering and balanced outputs for a truly high-end listening experience.
